TODOMAR 43 SPECIFICATIONS

LENGTH
43 ft | 13.1m
PERSON CAPACITY
12
BEAM
11.8 ft | 3.6m
FUEL CAPACITY
500 Gallons
DRAFT
-
WATER CAPACITY
120 Gallons
HULL SHAPE
Deep V-Shape
MAX SPEED
50 knts (in rough waters)
TODOMAR 43
Console
HULL & DECK
ELECTRIC SYSTEMS
Navigation
ANCHOR SYSTEM
ENGINE PACKAGE
ACCESSORIES
Specification sheet

Todomar 43

INTRODUCTION | Designed by Boksa Marine Designs, a prestigious American naval architecture and engineering company, under our parameters of the perfect boat. It offers power, versatility and comfort designed for our most demanding customers.

It is perfect to enjoy recreational activities such as fishing, diving, among other water sports. It has a cabin with air conditioning and separate bathroom, in addition to:

Center Console

  • 3 high performance chairs.
  • (1) Clear acrylic windshield
  • (1) Fiberglass footrest platform
  • (1) Silver acrylic mirror



Cabin

  • Built-in full bathroom
  • Sanitary Dometic 12V
  • Fiberglass sink
  • Shower head
  • Room with conversion to bed
  • Internal furniture set in pvc



Aft Room

(1) L-shaped lounge bench located aft
(1) Seats and backrests for aft room

Hull

  • Fiberglass hull laminated with biaxial system.
  • PVC frames in Polyurethane covered in fiberglass.
  • Full deck with gutters and dry floor.
  • SSI cabinets with (2) cup holders on the side of the deck, (2) cabinets for fire extinguishers on the side of the deck, (2) built-in bin



Ironwork

  • (10) Cleats: (2) At the bow of 8”, (2) At the stern of 8”, (2) At the sides of 6” and (4) At the sides of buoys
  • (8) Stainless steel cup holders: (4) In the console cabinet, (4) Next to the sunshade
  • Hinges and pulls on each cover
  • (3) Drag eyes
  • (2) fairlead
  • (1) Stainless steel fuel intake
  • (1) Stainless steel water intake
  • (2) Flush tank breather




Keepers

  • (3) Keepers in bow bench
  • (3) Keepers in aft bench
  • (1) Floor storage

Structure, Handrail and Roof

  • (1) Sport XL structure in white aluminum
  • (1) XL hard top in white gelcoat painted fiberglass
  • (2) Stainless steel handrails at the bow with a height of 8 cm
  • (1) Telescopic ladder with 4 steps on the side door



Cooler

  • (1) In the bow to the left side of the sunshade
  • (1) Aft
  • (1) Right Back
  • Fresh Water System



Showers

  • Flojet 4.5 GPM Shower Pump
  • Port side shower



Bilge System

  • (2) RULE brand 3700 GPH bilge pumps
  • (1) Gray water box
  • (1) RULE brand bilge water level alarm
    thruster system
  • (1) Imtra 12V Thruster
  • (1) 18M Harness
  • (1) Thruster Joystick
  • (1) Battery

Courtesy lights

  • (2) White Mirage lights located in bathroom
  • (2) White Hella lights located on aft bench
  • (2) White Hella lights located in stateroom
  • (1) White Hella light located on the forward bench
  • (3) White Hella lights located in hallway
  • (6) Hella blue lights located on ceiling
  • (1) Red Hella light located on ceiling above pilot's chair
  • (2) Deka Intimidator AGM Batteries for service
  • (3) Deka Intimidator AGM Batteries for Motors
  • (1) Blue Sea Systems 8-position switch panel on console
  • (1)DC control panel
  • (1) 4 1/2” Ritchie brand compass in black
  • (1) 12V outlet in console, (1) sundeck

Navigation system

  • (1) Raymarine Axiom 12” display with navigation chart
  • (1) Transducer in hull P79S


Navigation light set

  • (1) Position light located on tower
  • (1) Bubble type stern light
  • (1) Green/red bow navigation light
  • (1) Standard Horizon VHF Radio with Built-in GPS
  • (1) Shakespeare VHF Antenna
  • Sound Equipment System
  • Radio Apollo AM/FM MS-UD770
  • (6) 7.7″ speakers located in the ceiling

Anchoring system

  • (1) Anchor Guard Hardware
  • (1) 16kl anchor
  • (1) Anchor insurance
  • (1) 20 ft chain with 150 ft rope
  • (1) Drag eye
  • (1) Swivel Shackle

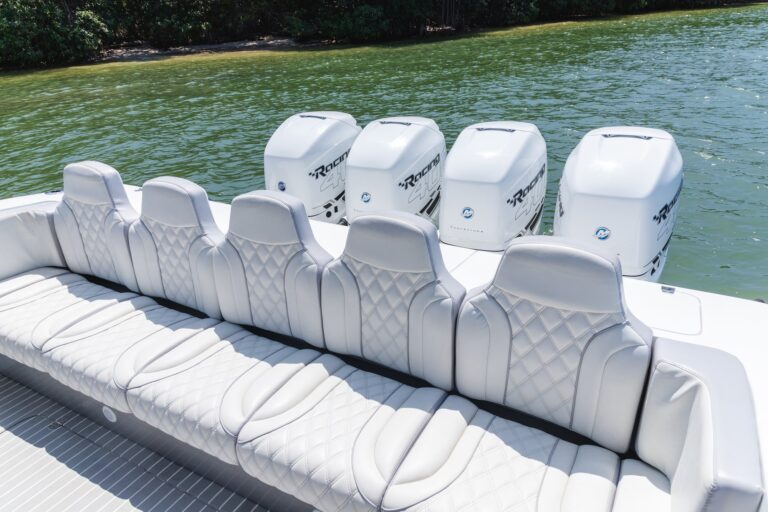

Engines

  • Mercury 450HP Racing (4)



Fuel tank

  • (2) Suctions for motors
  • (1) Fuel level sensor 17”
  • Fuel tank capacity: 500 gallons



Insta Trim Stabilizer Kit

  • (2) Stabilizers: (1) Port, (1) Starboard
  • (1) Hydraulic pump
  • (1) switch
  • (1) power cord
  • 72 meters of cable
  • (4) Defenses
  • (2) Lifebuoy
  • (1) Anchor, (1) 1m chain and (1) shackle
  • (24) Adult vests
  • (3) Children's vests

Customize your Todomar 43
